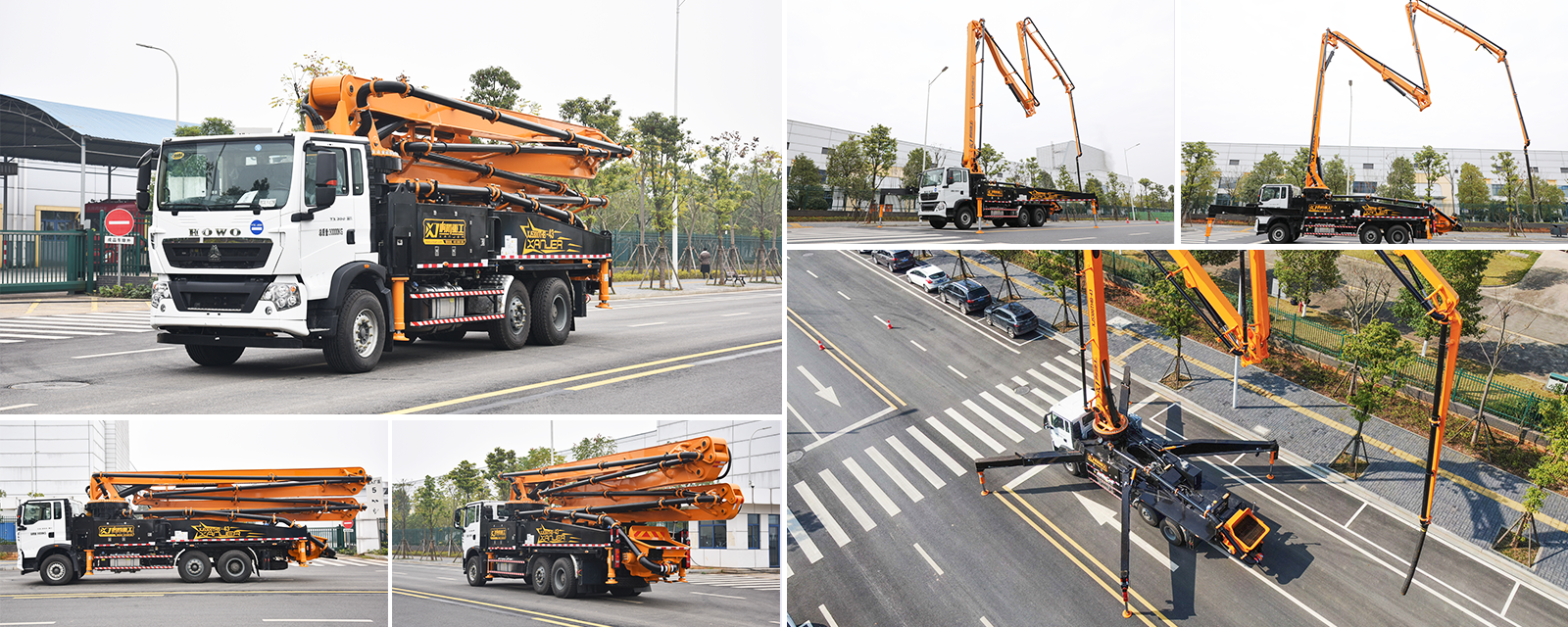

Truck Mounted Boom Pump

43-5ZR

Get Pricing

43-5ZR

42.1 m

Vertical Reach

38.1 m

Horizontal Reach

32.5 m

Reach Depth

105 m³/h

Output

ADVANTAGE INTRODUCTION

Intelligent: Equipped with 5G vehicle network technology, capable of remote fault diagnosis and working condition monitoring; well-designed ergonomics for efficient work.
Safety: Equipped with boom overload protection technology to protect the boom from damage, rioritizing safety without compromising performance.
Stability: Adopt double pump and double circuit system to ensure construction stability; external Stephenson linkage technology and through-shaft design increase pumping stability by 20%.
Flexibility: Flexible to deal with unfamiliar construction environment, compact structure, no overhang, very easy to operate, two-stage telescopic front outrigger, more flexible construction.
Savings: Maximize efficiency while minimizing costs. Reduce the number of parts, components and consumables, lower maintenance cost.

Specifications
Videos
Pictures
Brochures

Commodity name: 43-5ZR
ADVANTAGE INTRODUCTION: Intelligent: Equipped with 5G vehicle network technology, capable of remote fault diagnosis and working condition monitoring; well-designed ergonomics for efficient work. Safety: Equipped with boom overload protection technology to protect the boom from damage, rioritizing safety without compromising performance. Stability: Adopt double pump and double circuit system to ensure construction stability; external Stephenson linkage technology and through-shaft design increase pumping stability by 20%. Flexibility: Flexible to deal with unfamiliar construction environment, compact structure, no overhang, very easy to operate, two-stage telescopic front outrigger, more flexible construction. Savings: Maximize efficiency while minimizing costs. Reduce the number of parts, components and consumables, lower maintenance cost.
Vertical Reach: 42m-48m
Vertical Reach1: 42.1
Horizontal Reach: 30-40m
Horizontal Reach1: 38.1
Reach Depth1: 32.5
Output: 60/105m³/h
Output详情: 105
Boom Number: 5
Boom From: ZR

BOOM	Max Reach Vertical	42.1 m
	Max Reach Horizontal	38.1 m
	Max Reach Depth	32.5 m
	Unfolded Reach	8.5 m
	Section Numbers	5 Sections
	Folding Type	ZR Fold
	Boom Rotation Angle	90°/180°/230°/180°/180°
PUMP	Theoretical Output	105/60 m³/h
	Theoretical Pumping Pressure	14/7.5 MPa
	Theoretical Pumping Times	15/27 times/min
	Hydraulic System	Open
CHASSIS	Chassis Brand	HOWO
