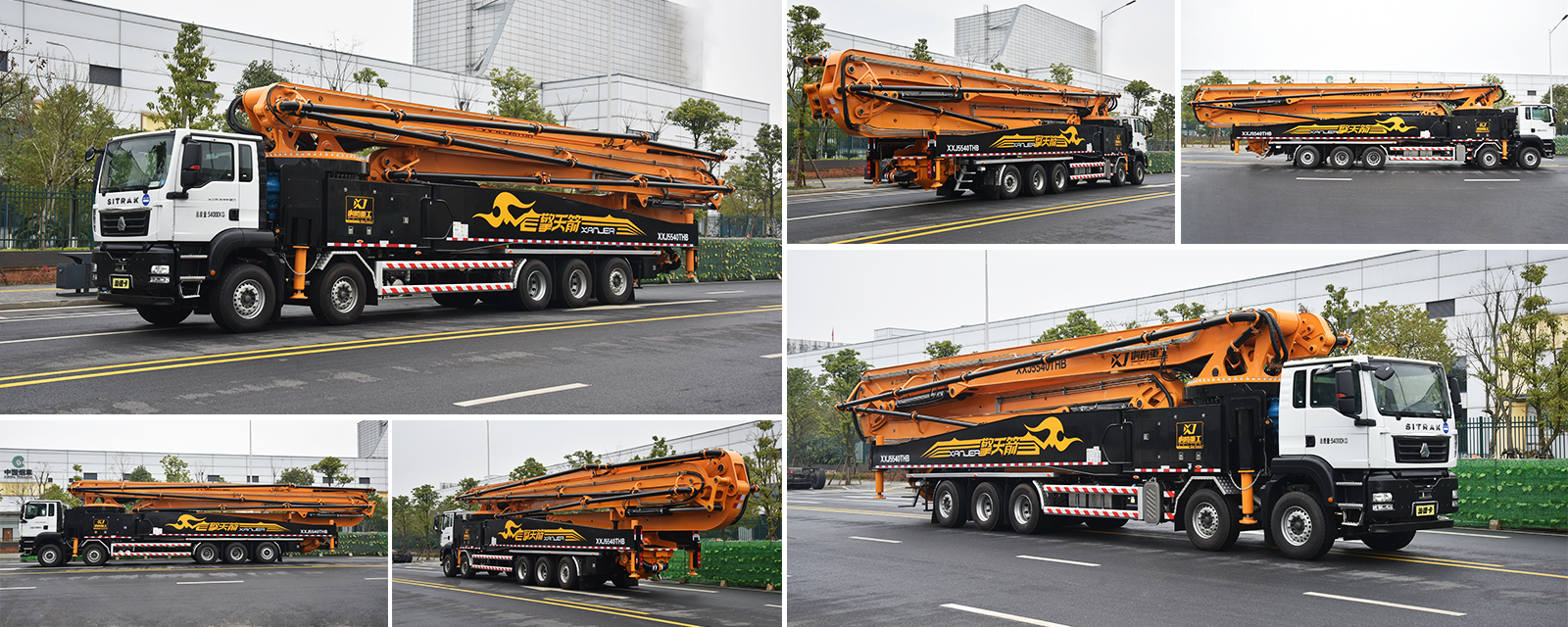

Truck Mounted Boom Pump

73-6RZ

Get Pricing

73-6RZ

72.1 m

Vertical Reach

67.05 m

Horizontal Reach

50.2 m

Reach Depth

150 m³/h

Output

ADVANTAGE INTRODUCTION

Intelligent: Equipped with 5G vehicle network technology, capable of remote fault diagnosis and working condition monitoring; well-designed ergonomics for efficient work.
Safety: Equipped with boom overload protection technology to protect the boom from damage, rioritizing safety without compromising performance.
Stability: Adopt double pump and double circuit system to ensure construction stability; external Stephenson linkage technology and through-shaft design increase pumping stability by 20%.
Flexibility: Flexible to deal with unfamiliar construction environment, compact structure, no overhang, very easy to operate, two-stage telescopic front outrigger, more flexible construction.
Savings: Maximize efficiency while minimizing costs. Reduce the number of parts, components and consumables, lower maintenance cost.

Specifications
Videos
Pictures
Brochures

Commodity name: 73-6RZ
ADVANTAGE INTRODUCTION: Intelligent: Equipped with 5G vehicle network technology, capable of remote fault diagnosis and working condition monitoring; well-designed ergonomics for efficient work. Safety: Equipped with boom overload protection technology to protect the boom from damage, rioritizing safety without compromising performance. Stability: Adopt double pump and double circuit system to ensure construction stability; external Stephenson linkage technology and through-shaft design increase pumping stability by 20%. Flexibility: Flexible to deal with unfamiliar construction environment, compact structure, no overhang, very easy to operate, two-stage telescopic front outrigger, more flexible construction. Savings: Maximize efficiency while minimizing costs. Reduce the number of parts, components and consumables, lower maintenance cost.
Vertical Reach: ＞63m
Vertical Reach1: 72.1
Horizontal Reach: ＞60m
Horizontal Reach1: 67.05
Reach Depth: ＞50m
Reach Depth1: 50.2
Output: 150 m³/h
Output详情: 150
Boom Number: 6
Boom From: RZ

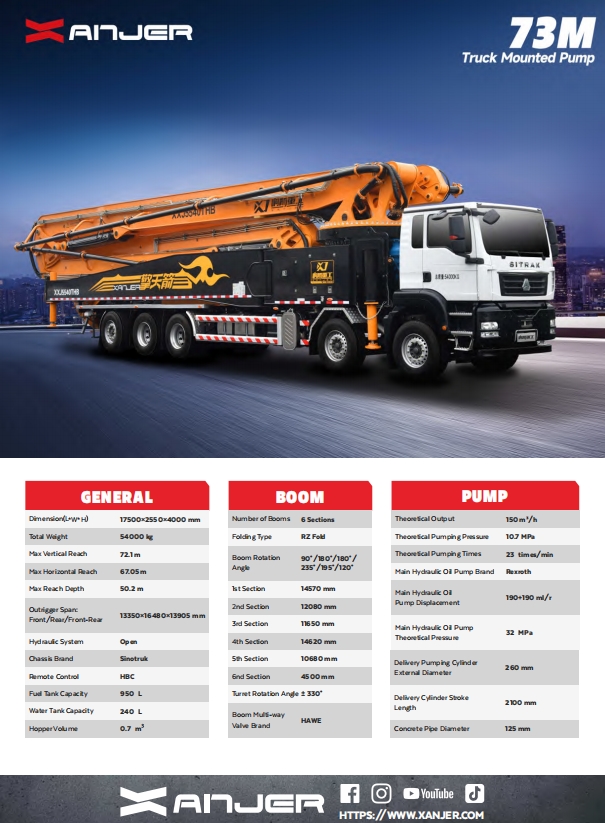

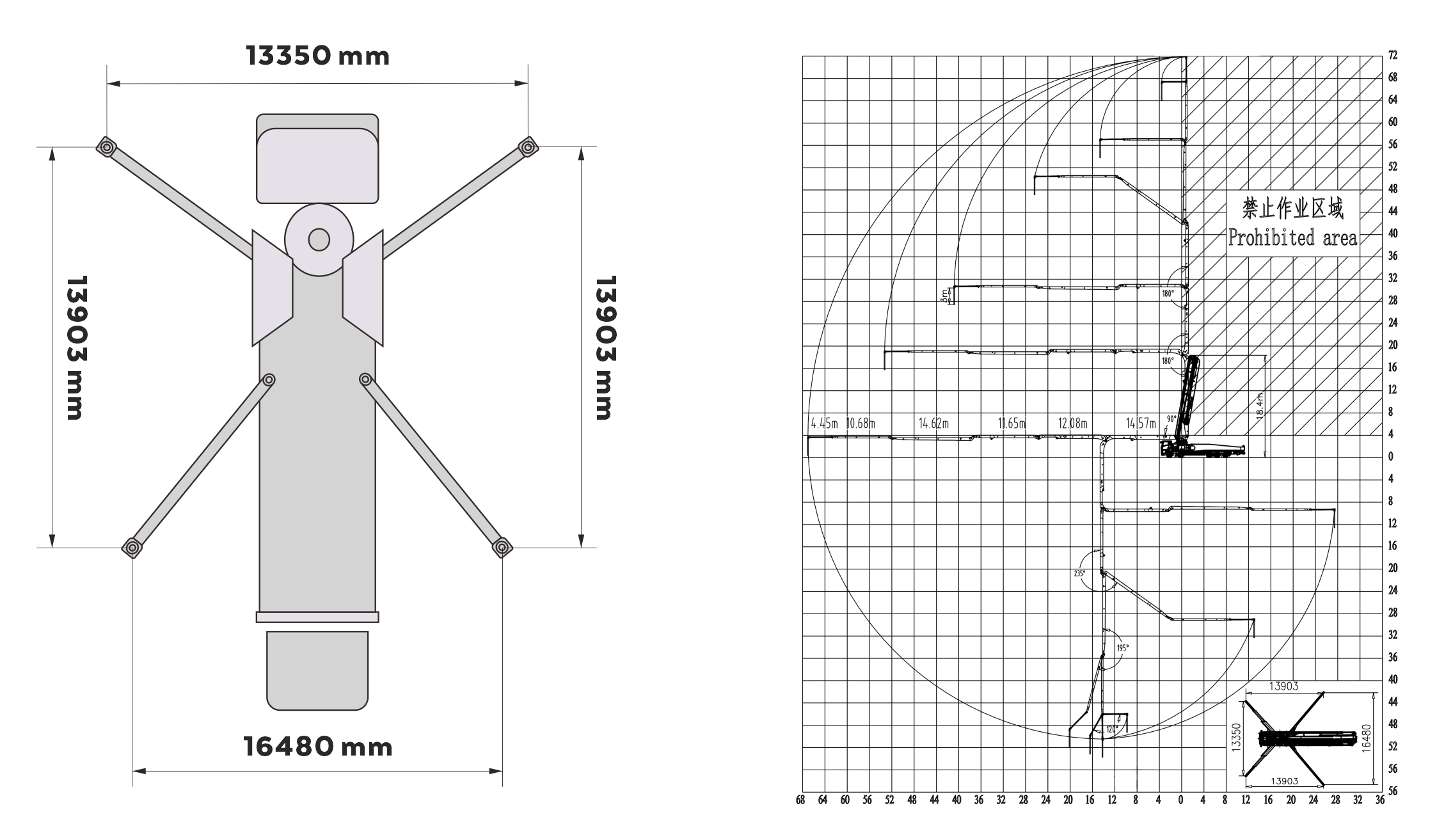

BOOM	Max Reach Vertical	72.1 m
	Max Reach Horizontal	67.05 m
	Max Reach Depth	50.2 m
	Unfolded Reach	19 m
	Section Numbers	6 Sections
	Folding Type	RZ Fold
	Boom Rotation Angle	90°/180°/180°/235°/195°/120°
PUMP	Theoretical Output	150 m³/h
	Theoretical Pumping Pressure	10.7 MPa
	Theoretical Pumping Times	23 times/min
	Hydraulic System	Open
CHASSIS	Chassis Brand	SINOTRUK
