HG33-4R
| TECHNICAL SPECIFICATION | Max.Placing Radius | 33 m | |
| Rotation | 365° | ||
| Working Ambient Temperature(°C) | -20~+50℃ | ||
| Tower Height | 33 m | ||
| Installation Model | Flour | ||
| Climbing Speed | 0.5~0.8 m/min | ||
| Climbing Mode | CylinderJack-upType | ||
| Power Supply | 380V,50Hz | ||
| Power | 15 KW | ||
| System Pressure | 32 MPa | ||
| Control Systems | Manual/Radio | ||
| Pipe Cleaning Mode | Water/DryCleaning | ||
| Total Weight | 24 t | ||
| Boom Design | 4R | ||
| Base | Optional | ||
| Pipe Diameter | 125 mm | ||
| End Hose Length | 3 m | ||
| 1st Boom Length | 9730 mm | ||
| 1st Boom Articulation | 89° | ||
| 2nd Boom Length | 7850 mm | ||
| 2nd Boom Articulation | 180° | ||
| 3rd Boom Length | 7880 mm | ||
| 3rd Boom Articulation | 180° | ||
| 4nd Boom Length | 7540 mm | ||
| 4nd Boom Articulation | 235° | ||

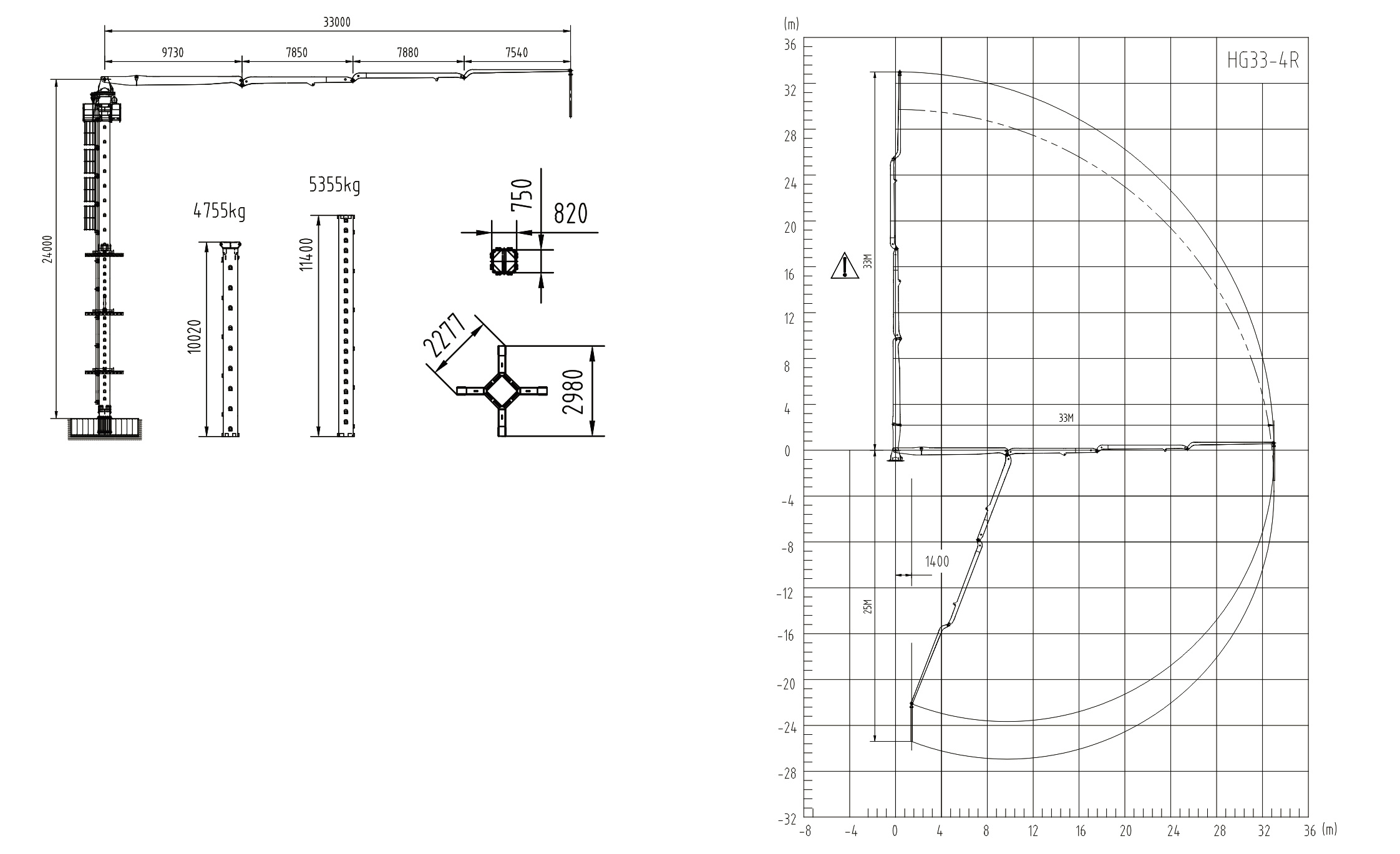

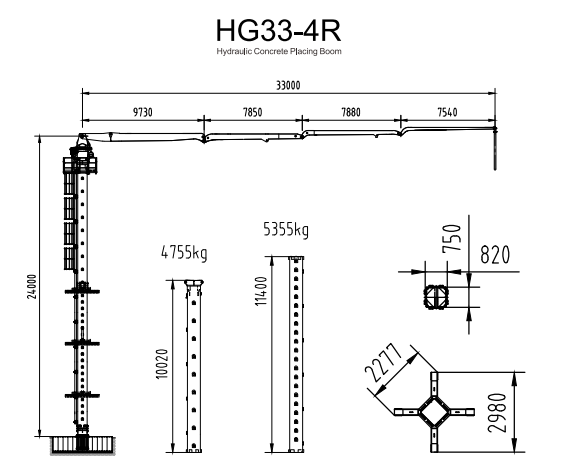

| Technical Details | Boom Working Diagram |
| Technical Details | Boom Working Diagram |
