HGM18-3R
| TECHNICAL SPECIFICATION | Max.Placing Radius | 18 m | |
| Rotation | 365° | ||
| Working Ambient Temperature(°C) | -20~+50℃ | ||
| Tower Height | 18 m | ||
| Installation Model | Free Installation of Supporting for Four Outriggers | ||
| Power Supply | 380V,50Hz | ||
| Power | 11 KW | ||
| System Pressure | 20 MPa | ||
| Control Systems | Manual/Radio | ||
| Pipe Cleaning Mode | Water/DryCleaning | ||
| Total Weight | 8 t | ||
| Counter Weight | 2.8 t | ||
| Boom Design | 3R | ||
| Pipe Diameter | 125 mm | ||
| End Hose Length | 3 m | ||
| 1st Boom Length | 7300 mm | ||
| 1st Boom Articulation | 89° | ||
| 2nd Boom Length | 6200 mm | ||
| 2nd Boom Articulation | 180° | ||
| 3rd Boom Length | 4500 mm | ||
| 3rd Boom Articulation | 180° | ||

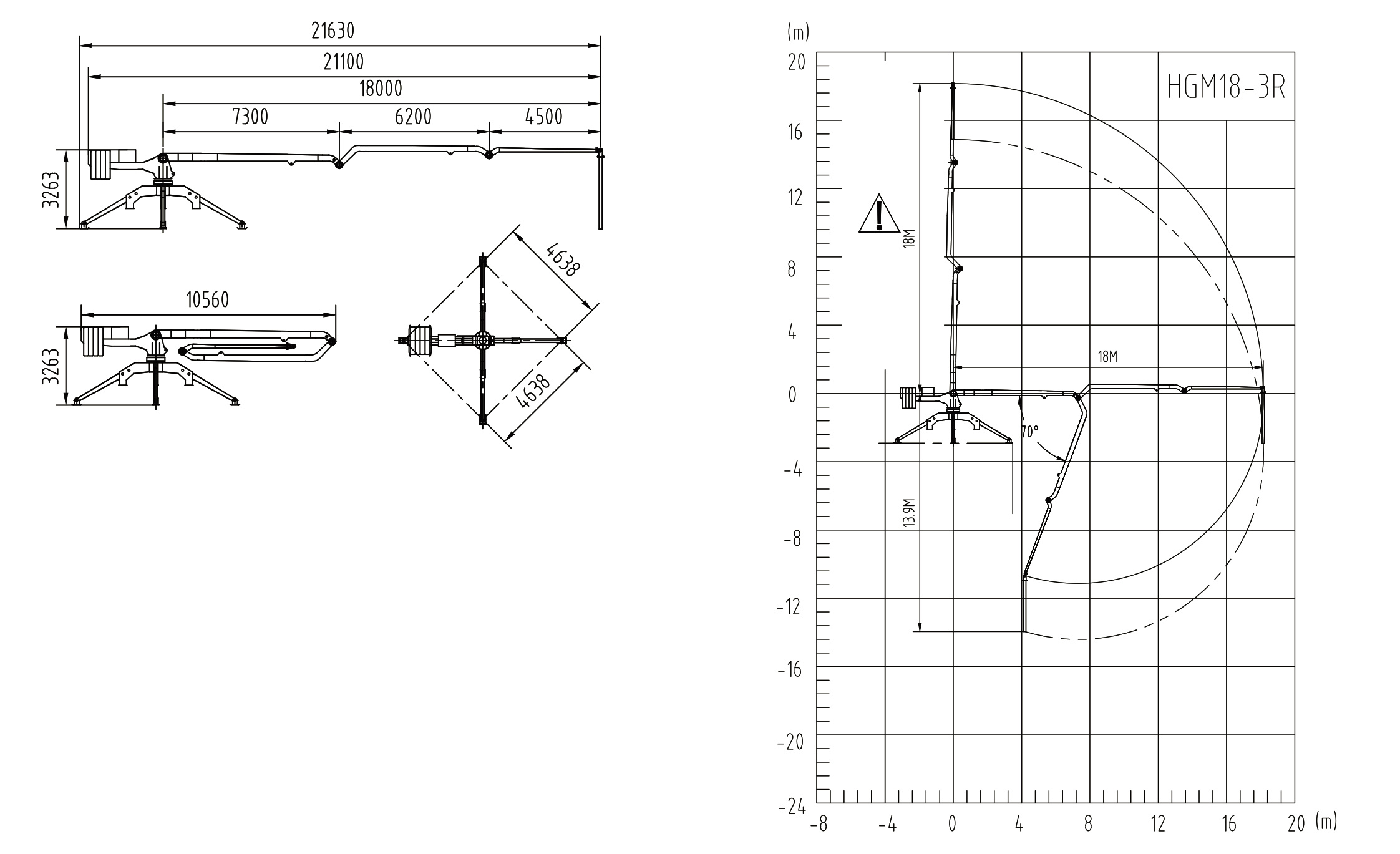

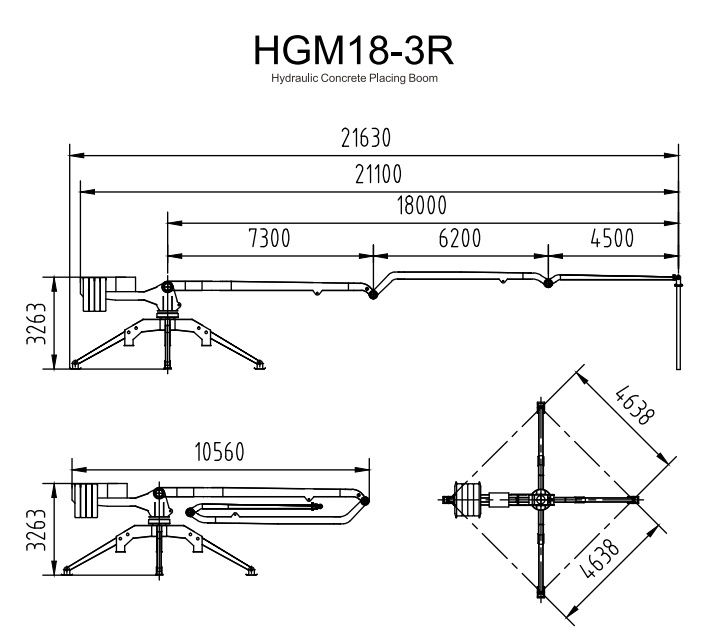

| Technical Details | Boom Working Diagram |
| Technical Details | Boom Working Diagram |
